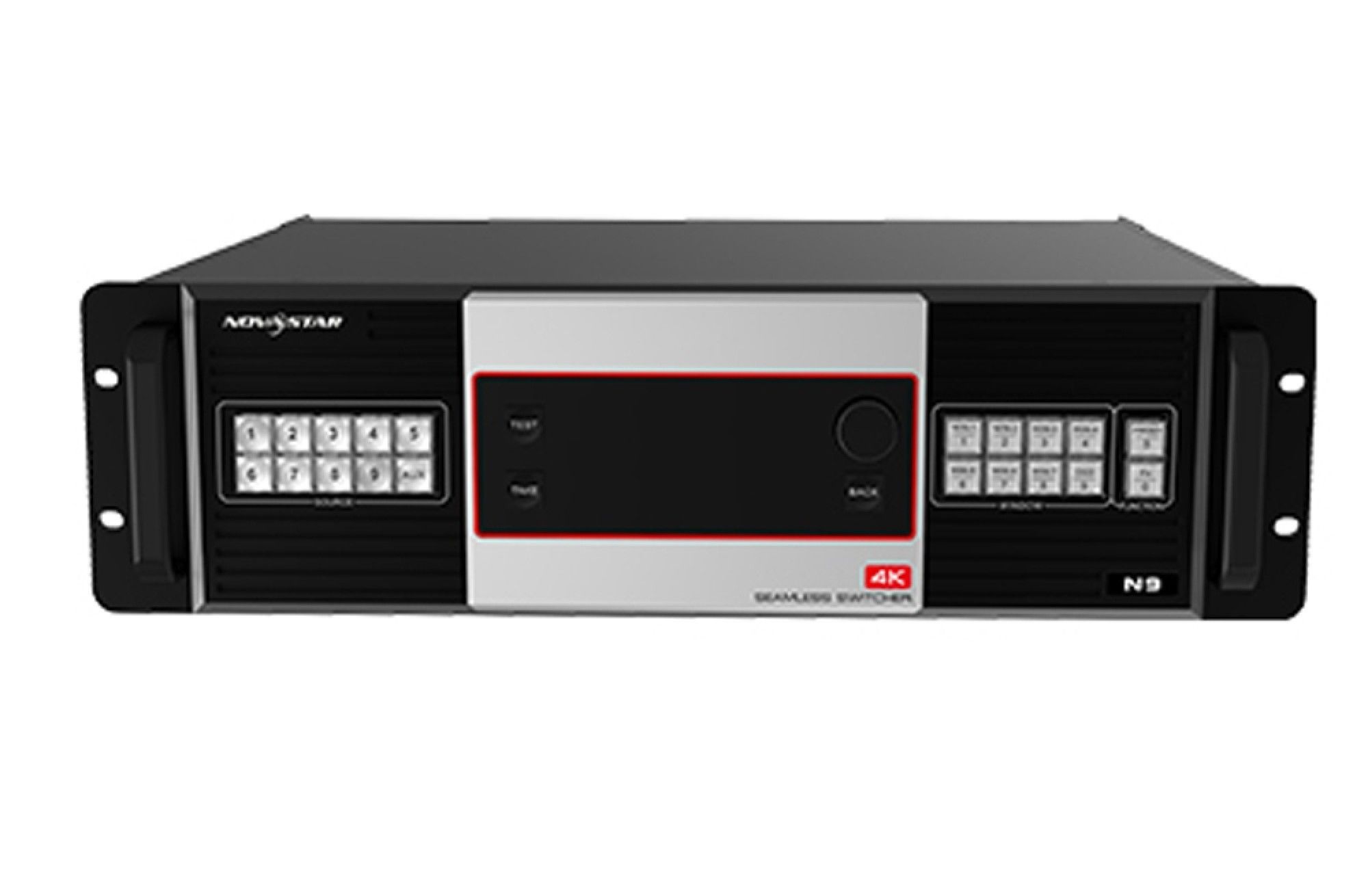

Description Novastar N9 LED Wall Video Switcher HDMI Overview: The N9 is a high-performance multi-screen video switcher independently developed by NovaStar. Using high-performance video processing technologies, it is capable of processing and outputting ultra-high quality images. The N9 also provides powerful video signal receiving capability. It can support 9 inputs and 4 DVI outputs at the same time. A single N9 can load up to an 8K screen, and multiple N9 units can be cascaded for output. The N9 can work with NovaStar’s desktop console C1 and make the operation of N9 on stage more convenient. It is also equipped with brand-new smart management software V-Can from NovaStar to provide richer image mosaic effects. Thanks to the powerful capabilities of receiving and processing a variety of video signals, the N9 can be widely used in various scenarios, such as intermediate and high-end rental, stage control, media centers, big conference sites, exhibition sites and concert control centers. Novastar N9 LED Wall Video Switcher HDMI Feature: 1. Up to 9 inputs, including 1 × dual-link DP 1.1 (can be replaced by HDMI 1.4, DP 1.1 or dual-link DVI), 2 × HDMI 1.3 (can be replaced by DVI/VGA/CVBS), 4 × DVI,1 × DP 1.2 and 1 × 3G-SDI.2. Up to 7 layers supported at the same time. Max. resolution of each layer:3840×2160, 7680×1080 or 1920×4320.3. Customized BKG settings You can load an image file from the control computer or capture an input source image displayed on the screen as the BKG image.4. Shaped layer, layer mask and color keying supported5. Layer cloning and Z-order layer sorting supported6. Input source image cropping supported7. Quick mosaic and custom mosaic8. EDID management supported Supports custom EDID and standard EDID.9. 4 × DVI mosaic output, 4 × DVI backup output, 1 × HDMI preview output, and 2× Aux output10. Output resolution settable. The mosaic width of 4 outputs can be up to 15360×600.11. 4 × single-link mosaic output, or 2 × dual-link mosaic output12. Input, PVW, PGM and prompter monitoring supported by MVR connector13. Layer position and size adjustable Layers can be added with borders of custom widths and colors.14. 32 presets A total of 32 user presets can be created and saved as templates which can be used directly and conveniently.15. Intuitive color LCD screen and clear button indicator prompt on the front panel, simplifying system control and operation.16. Genlock synchronization and synchronization with any input source supported, achieving output vertical synchronization. Novastar N9 LED Wall Video Switcher HDMI Parameter: Input INPUT-1 Dual-link DP 1.1 input, 3840×1080@60Hz and downward compatible This connector can be replaced by an HDMI 1.4, DP 1.1 or dual link DVI connector based on user requirement. INPUT-2 HDMI 1.3, 1920×1080@60Hz and downward compatible This connector can be replaced by DVI, VGA or CVBS connector based on user requirement to accept different video sources. INPUT-3 INPUT-4 DVI1–DVI4, VESA standard compliant, 1920×1080@60Hz and downward compatible INPUT-5 INPUT-6 INPUT-7 INPUT-8 DP 1.2, 3840×2160@60Hz and downward compatible DP1.2 LOOP INPUT-9 3G-SDI, 1920×1080@60Hz and downward compatible SDI LOOP Output HDMI HDMI output connector, capable of monitoring 9 input sources, PVW and PGM. DVI1-DL/PGM1 DVI1 output If the output mode is set to dual link, this connector is DuallinkOut1. DVI2/PGM2 DVI2 output If the output mode is set to dual link, this connector is invalid. DVI3-DL/PVW1 DVI3 output If the output mode is set to dual link, this connector is DuallinkOut2. DVI4/PVW2 DVI4 output If the output mode is set to dual link, this connector is invalid. HDMI1/HDMI2 2 Aux output connectors Control ETHERNET A control connector (RJ45) USB For the connection with control computer USB (Type-B) USB For cascading N9 units USB (Type-A) IN–Genlock– For synchronizing cascaded devices LOOP
